UVC flood lights have become a go-to solution for disinfecting everything from hospitals to schools to massive sports stadium. They’re fast, they don’t rely on harsh chemicals, and when used right, they can knock out 99.9% of bacteria and viruses on surfaces and in the air.
But here’s the thing: knowing you need UVC lights is one thing. Figuring out exactly how many you need for your facility is a whole different story. Too few, and some areas won’t get the coverage they need. Too many, and you’re spending extra money on equipment you might not even use.
So how do you get it right? Let’s break it down step by step in a way that actually makes sense for real spaces like hospitals, sports arenas, schools, and more.

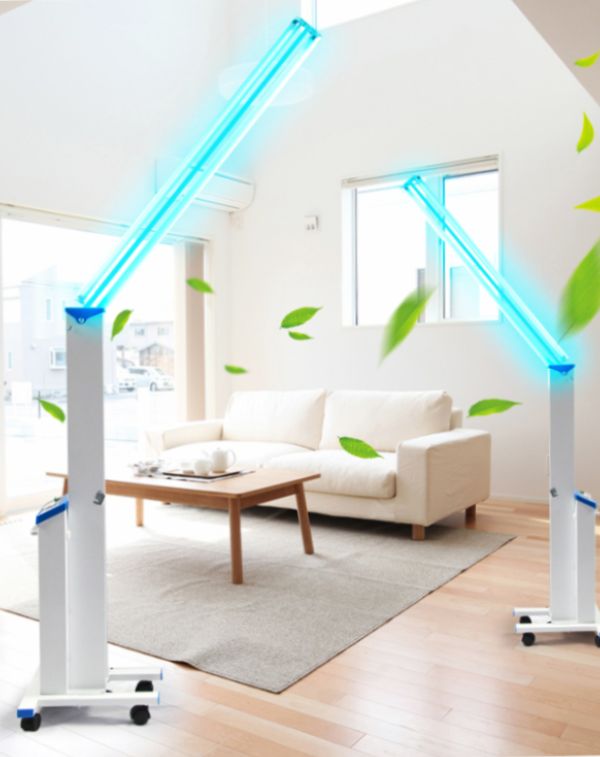

Understanding UVC Flood Lights and Coverage
Before diving into calculations, it helps to know how UVC flood lights actually work when it comes to coverage. A UVC flood light emits ultraviolet light at a specific wavelength — usually around 254 nanometers (nm) — which damages the DNA or RNA of microorganisms, making them inactive.
Every light has a coverage area, basically the total space it can disinfect within a certain time. But here’s where it gets tricky: coverage isn’t just about floor space. Room height, furniture, walls, and even the reflectivity of surfaces all affect how far the light can reach.
Take a small hospital operating room measuring 10 meters by 8 meters with a ceiling height of 3 meters. A single high-powered UVC flood light might be able to disinfect the entire room in 10 minutes if positioned correctly. Now imagine a stadium locker room that’s 40 meters long, 20 meters wide, and 5 meters high. That same light won’t cut it. You’d probably need several units or a higher output model to handle such a big area in a reasonable time.
Key Parameters for Calculating the Number of Lights
When you’re trying to figure out how many UVC flood lights a facility actually needs, there’s no single magic number that works everywhere. A small school gym and a massive stadium seating 50,000 people have totally different setups, right? That’s why it helps to break things down into a few key factors that really drive the final calculation.
Room Dimensions Matter More Than You Think
Let’s start with the obvious one: size. The length, width, and height of a space basically decide how many lights you’ll need. Say you’ve got a hospital room that’s 10 meters long, 8 meters wide, and 3 meters high. That’s 240 cubic meters of air and surfaces to disinfect. A single UVC flood light covering 60 cubic meters in 10 minutes would need at least four units running at the same time to finish the job quickly enough.
Target Disinfection Level Changes Everything
Different spaces have different speed requirements. Hospitals often need fast disinfection cycles because operating rooms or ICUs might have only 10 to 15 minutes between patients. That means more lights running at higher intensities to hit every corner quickly.
Sports facility, on the other hand, usually have more flexible schedules. After a basketball game or a wrestling event, there might be an hour or two before the next activity, so the facility could run fewer lights for a longer cycle. A 30-minute run might be perfectly fine for locker rooms, player benches, or even entire seating areas, especially if the place is empty for the night.
Light Intensity and Wavelength – The Tech Side
Not all UVC lights are created equal. Some smaller units might only cover 50 square meters, while industrial-grade flood lights can handle over 250 square meters in one go. For huge spaces like football fields, a few high-powered lights often make more sense than dozens of smaller ones — fewer things to install, maintain, and replace over time.
And then there’s the wavelength question. UVC lights around 254 to 265 nanometers tend to kill germs the fastest. That sweet spot is what most hospitals use because it balances power and safety. Sports facilities aiming to disinfect large areas overnight often go for lights in this same range because it lets them get the job done in a single cycle instead of running lights for hours.
Mounting Type – Fixed or Portable?
How you install the lights changes the game too. Fixed ceiling-mounted units give you consistency. They stay in place, cover the same area every time, and are perfect for hospital operating rooms or stadium restrooms where the layout doesn’t change.
But portable UVC flood lights bring flexibility. Picture a sports facility after a big game: first, the locker rooms need disinfection, then the player benches, then maybe the VIP seating area. Instead of buying 50 lights for each space, you can buy 10 mobile units and move them around as needed. Sure, each area gets done one after the other instead of all at once, but for facilities with longer turnaround times, that trade-off can save serious money.
Usage Frequency and Lamp Life
How often the lights run affects not just how many you need but also how long they last. A hospital ICU might run UVC lights five or six times a day, racking up over 2,000 hours of use per year. A facility disinfected mainly after events might only run them a few times a week, maybe 500 to 800 hours annually.
That difference matters because UVC bulbs have lifespans measured in hours. Many standard lamps last around 10,000 hours, while some LED-based UVC lights go up to 20,000 hours or more. If you’re running lights daily in a hospital or after every single game in a field, choosing longer-lasting units cuts down replacement costs big time.
Step-by-Step Calculation Method
Let’s break down a straightforward way to figure out how many UVC flood lights you actually need for any given facility. A lot of people get intimidated by the math, but honestly, once you see it laid out with a few real examples, it all starts to click.
Starting with Total Coverage Area or Volume
The first thing you need is the size of your space — either in square meters if you’re mainly disinfecting surfaces, or cubic meters if you’re targeting the air and everything inside the room. To get cubic meters, multiply the length, width, and height together. For instance, if a room is 20 meters long, 10 meters wide, and 4 meters high, that’s 800 cubic meters.
After that, you check the manufacturer’s specs for the UVC lights you’re planning to use. Most manufacturers will tell you something like, “this unit disinfects 50 square meters in 10 minutes” or “this light covers 100 cubic meters in 15 minutes.” That number is your baseline.
Now it’s just a simple division: total area divided by coverage capacity per light gives you the number of lights needed. But remember, this assumes you want the whole space disinfected in one cycle. If you’re okay with running multiple cycles or moving portable lights around, you can reduce the total number of units — it just takes more time.
Quick Basic Example
Let’s say you have a 300-square-meter open area, like a small hospital lobby. If each UVC flood light disinfects 30 square meters in 10 minutes, you divide 300 by 30 and get 10 lights. Pretty straightforward.
But here’s where things get interesting: not every facility has the same time pressure or room layout. A hospital might need super-fast disinfection between patients, while a sports facility can usually afford longer cycles after games. That’s why looking at real examples makes it easier to see how these numbers change in different scenarios.
| Step | Description | Example 1 – Hospital Operating Room | Example 2 – Sports Stadium Locker Room | Example 3 – School Classroom |
|---|---|---|---|---|
| 1 | Measure Room Dimensions | 10m × 8m × 3m | 40m × 20m × 5m | 9m × 6m × 3m |
| 2 | Calculate Room Volume | 10 × 8 × 3 = 240 m³ | 40 × 20 × 5 = 4,000 m³ | 9 × 6 × 3 = 162 m³ |
| 3 | Determine Target Disinfection Time | 10 minutes | 30 minutes | 20 minutes |
| 4 | Check Light Coverage per Unit | 60 m³ / 10 min | 200 m³ / 30 min | 50 m³ / 20 min |
| 5 | Calculate Number of Lights Needed | 240 ÷ 60 = 4 lights | 4,000 ÷ 200 = 20 lights | 162 ÷ 50 ≈ 4 lights |
| 6 | Consider Layout Adjustments | Add 1 portable unit for corners | Add 2 mobile units for hallways | Add 1 unit for obstructed area |
| 7 | Final Recommended Lights | 5 lights | 22 lights | 5 lights |

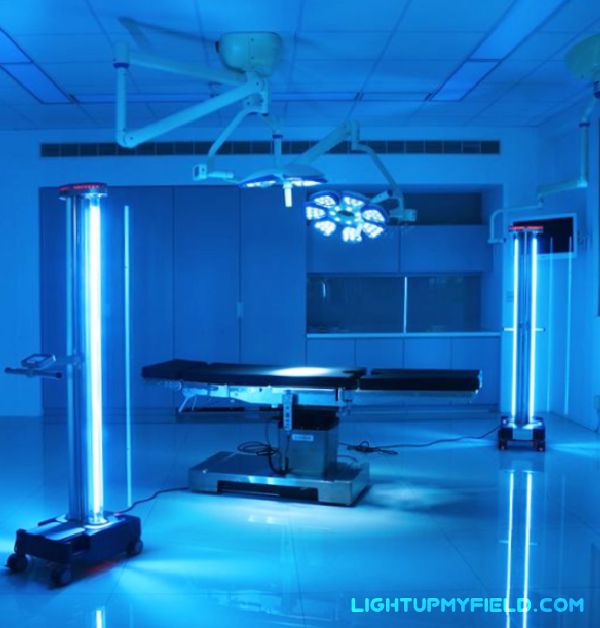

Example 1 – Hospital Operating Room
Take a standard hospital operating room. A common size is 10 meters long, 8 meters wide, and 3 meters high. That gives you 240 cubic meters.
If each UVC light you’re considering can disinfect 60 cubic meters in 10 minutes, you divide 240 by 60, which equals 4 lights.
Why does that matter? Well, surgeries often run back-to-back, so the cleaning crew might only have a 15-minute window to turn the room around for the next patient. Four lights running at the same time mean the entire room gets disinfected quickly without delaying the schedule.
And here’s another detail: many hospitals don’t just rely on one cycle. Some run two shorter cycles with overlapping coverage to make sure even hard-to-reach corners get hit. In that case, you might even add a fifth portable unit to move around during the second cycle.

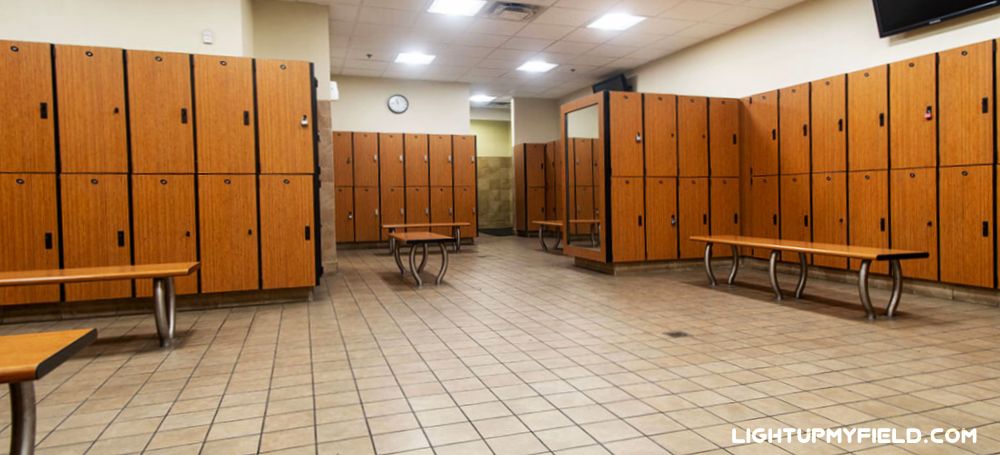

Example 2 – Sports Stadium Locker Room
Now let’s scale things up. Picture a stadium locker room measuring 40 meters by 20 meters with a 5-meter ceiling. That’s 4,000 cubic meters of space.
If you stick with the same 60-cubic-meter lights, you divide 4,000 by 60 and end up with about 67 lights to disinfect the whole place in one 10-minute cycle. That’s a lot, right?
But here’s the thing: most sports facilities don’t run lights for only 10 minutes. They might set up a 30-minute disinfection cycle after a big game, or even overnight when the building is empty. With longer cycles, you can use fewer lights because each one has more time to work.
Let’s say you use higher-powered UVC flood lights that cover 200 cubic meters each instead. Now you only need 20 lights for the same locker room, cutting the total number by two-thirds. Yes, the more powerful lights cost more upfront, but when you add up the savings in equipment and installation, going bigger can actually be cheaper in the long run.
Stadium also often use portable units for flexibility. Instead of permanently mounting 20 lights in the locker room, they might buy 10 portable ones and run two cycles back-to-back: first the locker room, then the player benches, then maybe the press area. This setup gives them full coverage without breaking the bank on dozens of fixed lights.

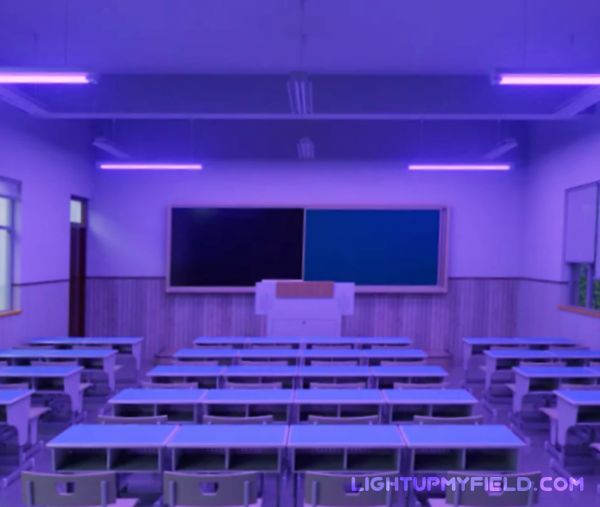

Example 3 – School Classroom
For something smaller, think about a typical classroom: 9 meters by 6 meters with a 3-meter ceiling. That’s 162 cubic meters total.
If each UVC flood light disinfects 50 cubic meters in 15 minutes, you’d need four lights to handle the room in one go. But since schools usually have longer windows — like after students leave for the day — they could easily run a 30-minute cycle instead. In that case, two lights might be enough, saving money while still keeping things safe for students and teachers the next morning.
These examples show how room size, disinfection speed, and light capacity all work together to determine the final number of UVC flood lights. A small hospital room might need only a handful of lights, while a massive stadium or warehouse could require dozens — unless they go for higher-powered units or longer cycles.
And here’s a little trick: always check the manufacturer’s coverage charts before buying. Many brands even have online calculators where you type in your room size, ceiling height, and desired disinfection time, and it spits out the exact number of units you need.
Practical Tips for Different Facilities
Every facility has its own quirks and priorities, so the way you calculate and deploy UVC flood lights will vary depending on the space. Let’s walk through some common scenarios and what usually works best.
Hospitals
Hospitals are packed with smaller rooms: patient wards, ICUs, operating theaters, and waiting areas. Because time is often tight between patients, disinfection has to be fast and thorough. That usually means installing multiple fixed UVC lights per room. For example, a standard 10-meter by 8-meter operating room with a 3-meter ceiling might need four high-powered units to fully sanitize the space in under 10 minutes.
Portable units also play a role. Hallways, corridors, or areas with irregular use can’t always rely on fixed lights. Hospitals might have two to three mobile units that staff can roll into place as needed, covering spaces like waiting rooms or examination areas between patient visits. This flexibility helps hospitals keep all areas safe without installing dozens of lights everywhere.
Sports Facilities
Sports arenas and domes have a completely different scale to consider. You’re often dealing with seating sections, locker rooms, concession stands, and hallways that span hundreds or even thousands of square meters. Installing dozens of small lights is usually inefficient. Instead, facilities often go for high-powered ceiling-mounted units that can cover large sections in one pass.
Portable or mobile units are also common in sports facilities. After a basketball game or wrestling match, staff can move 10–15 mobile UVC lights from locker rooms to seating areas to disinfect everything in stages. For instance, a 5,000-square-meter field might only need 20 high-output units running for 30 minutes each to hit all key areas, instead of hundreds of smaller lights.

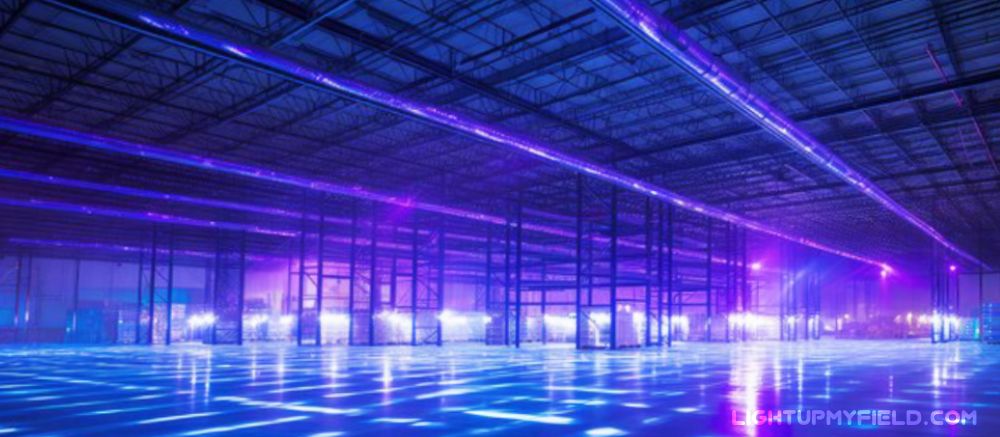

Warehouses and Manufacturing Plants
These spaces tend to have high ceilings and very open layouts, which changes the math a bit. Coverage depends heavily on mounting height because the higher you place the light, the wider its beam spreads. A single industrial-grade flood light mounted 6 meters high might cover 300 square meters, whereas the same light at 3 meters would cover significantly less.
For plants that operate around the clock, lights can be set to run during off-peak hours, reducing interference with workers. Some facilities also use portable units on wheels for specific areas that need extra attention, like storage zones or high-touch surfaces.
Schools and Universities
Schools are usually on a tighter schedule and budget. Classrooms, gyms, and cafeterias often get disinfected after hours, so speed isn’t always the top priority. Fewer lights running longer cycles can do the trick. For example, a 162-cubic-meter classroom could be sanitized effectively with two to three medium-powered lights over a 30-minute cycle, rather than cramming in four or five lights for a short 10-minute run.
Portable high-output units make it easier to hit the court and locker areas sequentially, without installing permanent fixtures that might get in the way of students or events.
Airports and Stations
Airports and transit hubs are some of the trickiest spaces. They’re massive, operate 24/7, and have high foot traffic, especially in restrooms, security checkpoints, and waiting areas. These facilities often use a combination of fixed ceiling units for continuous coverage in high-volume areas and portable UVC lights for targeted disinfection.
For example, a 1,000-square-meter terminal restroom might get two fixed lights running continuously overnight, while portable units are rolled through security zones or baggage areas in between flights. By mixing fixed and portable systems, airports can cover all critical areas efficiently without overspending.
Conclusion
Figuring out how many UVC flood lights you need isn’t guesswork once you know the room size, the light specs, and the disinfection speed you’re aiming for. Whether it’s a hospital operating room that needs fast turnaround times or a sports field disinfected after a big game, the right calculation keeps things efficient and cost-effective.
Using a mix of real measurements, manufacturer guidelines, and sometimes even software tools helps make sure you’re not overspending or leaving parts of your facility untreated. Getting it right from the start means better safety, smoother operations, and equipment that truly fits your needs.
