Cricket under the lights has completely changed the way fans experience the game. From local evening matches to big televised tournaments, a well-lit cricket ground is no longer a luxury—it’s a must for smooth play and clear broadcasting. But getting the lighting right isn’t as simple as putting up a few bright lamps. It’s a science that blends technology, design, and compliance with global standards.
So, what really goes into planning and installing cricket field lighting?

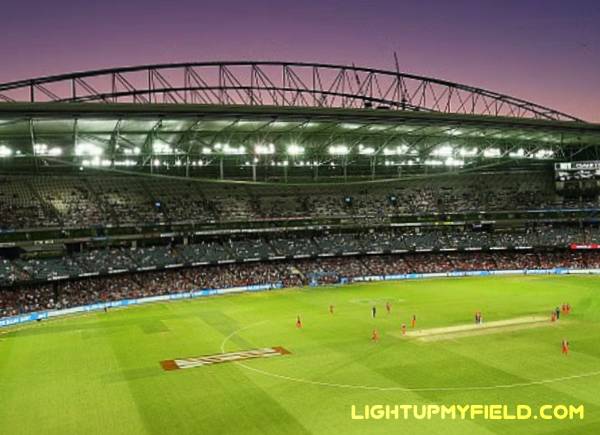

The first question to consider is simple: what do cricket lights really need to accomplish? It’s not just about throwing light on the field. A well-planned lighting system is about creating a balanced, glare-free environment where players, umpires, and spectators can all experience the game at its best. This means the pitch should be brightly and evenly illuminated, the outfield free from dark patches, and the overall setup optimized for both on-site fans and high-definition TV coverage.
Lighting intensity is usually measured in lux, and the lux requirements vary widely depending on the type of game being played. For local club matches or practice sessions, an average of 300–500 lux across the main playing area might be sufficient. However, once you move into professional cricket, especially televised events, the numbers climb significantly. For instance, domestic matches broadcast on standard TV often demand around 800–1,000 lux, while international games in HD can require anywhere from 1,200 to 2,000 lux horizontally across the field.
And that’s not the whole story. Modern broadcasting standards, especially for Ultra HD and slow-motion replays, also require strong vertical illuminance, typically ranging between 1,200 and 1,800 lux, to ensure the ball and player details look sharp from every camera angle.

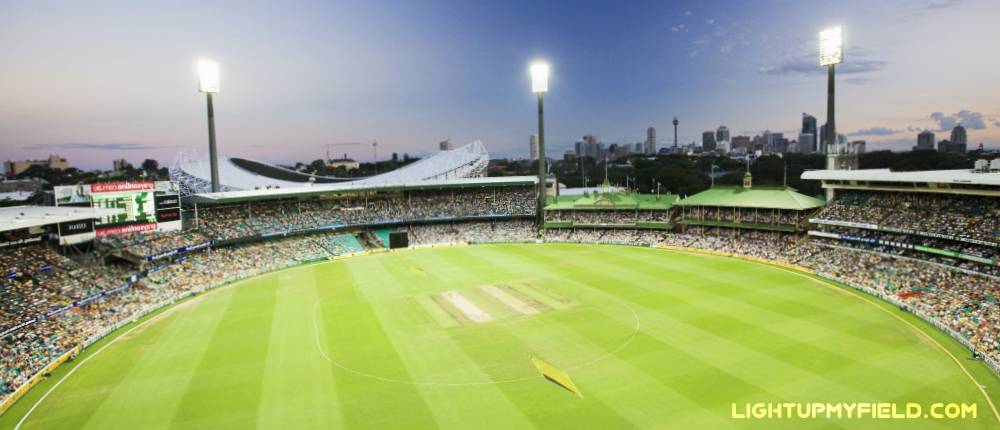

One of the biggest challenges is ensuring uniform light distribution. Imagine chasing a high ball only for it to vanish into a dark patch in the outfield—that’s a nightmare for players and a disaster for fairness. To prevent this, lighting designs use strict uniformity ratios like U1 and U2, which measure the evenness of illumination. A common requirement for professional cricket grounds is a minimum uniformity ratio of 0.7, meaning the darkest area should not be less than 70% of the brightest spot.
This consistency helps players track fast deliveries, aerial shots, and even sharp fielding moments without any visual discomfort.
Bright lights are great, but not when they’re blinding. Glare control is another major objective because excessive glare can impair a batsman’s view of a fast bowler or make it hard for a fielder to take a high catch. To manage this, lighting engineers use special optical lens systems and beam angles so the light spreads where it’s needed without shining directly into players’ eyes. This is especially important for stadiums where poles are installed at heights of 30–50 meters and carry high-intensity floodlights.
In short, the aim is clear vision without discomfort, which is key for both safety and high-quality performance.
Lighting a cricket ground isn’t as simple as throwing in a few powerful lights and calling it a day. It’s a calculated process where every angle, every lumen, and every fixture plays a role. The objective isn’t to make the field “look bright,” but to achieve balanced, uniform, and camera-friendly illumination across a massive playing area.
First, let’s talk about size. A standard cricket ground isn’t small—boundaries can range from 65 to 90 meters from the pitch, which means the total playing surface often exceeds 16,000 square meters. When you add in the stands, practice nets, and player areas, the coverage requirement becomes even bigger. This scale means the lighting plan needs strategic pole placement and beam distribution to avoid over-lighting one zone and under-lighting another.
Not every part of the ground needs the same level of brightness. The pitch, for example, is the star of the show. It demands the highest illumination levels, often meeting or exceeding 2,000 lux for professional games, because this is where the ball moves fastest and players need sharp visibility. The outfield usually gets slightly less—around 1,000 to 1,500 lux—while practice nets and spectator areas can work with lower levels.
This zoning approach ensures energy efficiency without sacrificing performance where it counts.
Ever watched a game and noticed the ball disappearing into a shadow or a fielder squinting because of harsh glare? That’s a sign of poor design. Shadows can ruin a game’s fairness, and glare can be dangerous for players. Engineers solve this by carefully aiming floodlights at precise angles, usually between 25° and 60°, and spacing them in such a way that their beams overlap, minimizing dark spots.
Some modern systems also use anti-glare shields and special optics to make sure the light hits the field, not the players’ eyes.

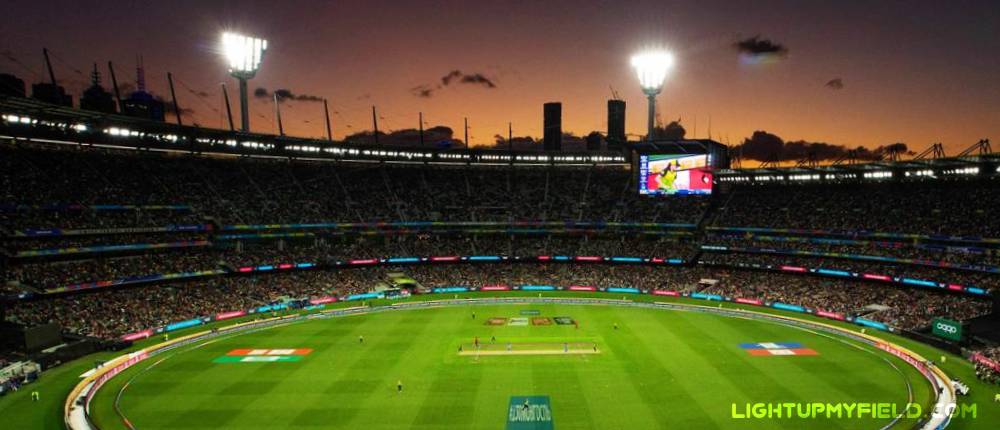

Lighting isn’t just about brightness; it’s also about how things look on TV and to the spectators. For high-definition broadcasts, the color temperature should stay between 5000K and 6500K, which gives a natural daylight feel. Then there’s CRI (Color Rendering Index), which measures how accurately colors appear under the lights. For professional cricket, a CRI of 80 or above is a must so that team jerseys, pitch conditions, and even the ball look true-to-life on screen.
This attention to color quality also makes the viewing experience more vibrant and enjoyable for fans in the stands.
| Aspect | Specification / Recommended Value |
|---|---|
| Ground Size | Boundary: 65–90 m from pitch; Playing area: 16,000+ m² |
| Illumination Levels | Pitch: 1,500–2,000 lux (pro games); Outfield: 1,000–1,500 lux; Practice/Spectator zones: lower levels |
| Beam Angles | Typically 25°–60° for floodlights |
| Shadow & Glare Control | Use beam overlap, anti-glare shields, and precise pole placement |
| Color Temperature | 5000K–6500K (daylight-like for HDTV) |
| CRI (Color Rendering Index) | 80+ for accurate color reproduction |
Not too long ago, metal halide lamps were the standard in stadium lighting. They did the job, but they came with big drawbacks—slow warm-up times, massive energy consumption, and frequent maintenance. Today, the game has changed. Most cricket grounds, whether local or international, are now moving to LED floodlights, and honestly, it’s not hard to see why.
LED technology offers energy savings of 50–70% compared to traditional systems, which is huge when you’re running lights for hours during night matches. On top of that, LEDs have an impressive lifespan of 50,000 to 100,000 hours, meaning they can last up to 10 years without needing replacement. That’s a big cut in maintenance costs.
One of the most practical benefits of LEDs? Instant light. Unlike old metal halides that needed 15–30 minutes to reach full brightness, LEDs turn on at full power in seconds. That’s a lifesaver when there’s a sudden power outage or when the schedule changes.
And here’s another cool feature: dimming capability. Want to lower the brightness for a practice session to save energy? With LEDs, it’s easy. You can drop the output to 30–40% for training sessions, cutting electricity use even further without affecting the lighting quality.
If you’ve ever watched an HD cricket match in slow motion, you’ve probably noticed how crisp every detail looks. That’s because modern LED systems offer flicker-free performance, which is absolutely necessary for high-speed cameras running at 2,000–3,000 frames per second. Old lighting systems couldn’t handle this—they produced a noticeable flicker that ruined replays. LEDs eliminate that problem completely, ensuring smooth, broadcast-ready visuals every time.
Lighting is getting smarter. Many modern stadium systems now include centralized control panels or even app-based solutions, so you can manage everything from a tablet or smartphone. Want the lights to gradually brighten before the match? Schedule it. Need different brightness levels for practice, domestic games, and international fixtures? Set presets. Some systems even use IoT sensors to adjust lighting based on natural daylight, further improving energy efficiency.
Outdoor cricket lights don’t just need to be bright—they need to survive. Weather conditions can be brutal, with heat during summer, heavy rain in monsoon season, and strong winds during storms. That’s why high-end LED floodlights usually come with IP65 or even IP66 protection ratings, which means they’re dustproof and can handle powerful water jets without damage. Many also feature corrosion-resistant aluminum housing and advanced heat dissipation systems to keep performance stable even at ambient temperatures above 45°C.
Some stadiums even install wind-resistant poles and vibration-proof brackets to ensure lights stay firmly in place during extreme conditions.

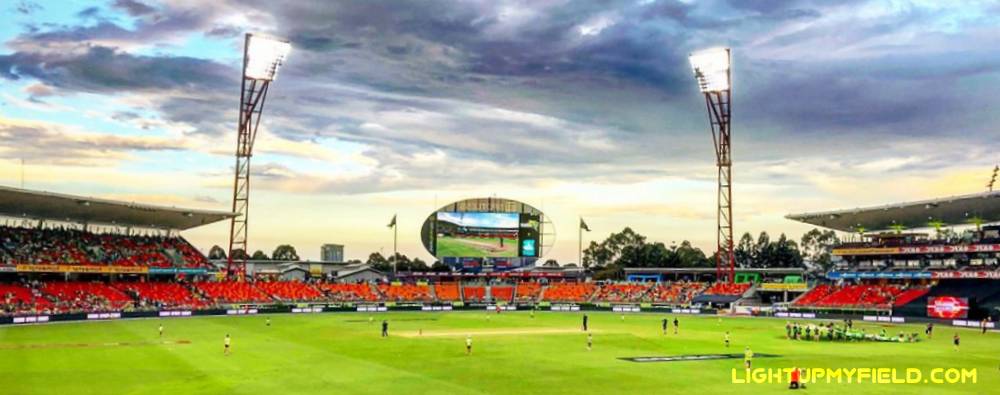

Lighting poles might look like just tall steel structures holding a bunch of floodlights, but their role is far from basic. The design and positioning of these poles can make or break the entire lighting system. Get it wrong, and you’ll end up with harsh shadows, blind spots, or worse—lights that don’t meet broadcast standards.
For most professional cricket grounds, pole height usually falls in the range of 30 to 50 meters (98 to 164 feet). Why so high? Because the higher the light source, the better the coverage. A tall mounting height ensures wider light spread and reduced shadow formation, which is crucial when a fielder is running after a lofted shot or a bowler delivers a quick bouncer under night conditions.
But going taller isn’t simple. The structural challenges grow with height. A 40-meter pole has to handle massive wind loads, sometimes exceeding 150 km/h in extreme weather zones, plus the weight of multiple heavy luminaires. That’s why these poles are usually made from high-strength galvanized steel and anchored with deep concrete foundations. Engineering teams often run wind tunnel tests and structural simulations before approving the design.
The number of poles depends on the size of the ground and the required lighting level. A small local ground might manage with 4 poles, but for full-scale international stadiums, 6 to 8 poles are common. In some cases, especially with premium LED systems and advanced optics, even roof-mounted lighting is added for perfect uniformity.
Each pole usually carries 20 to 40 LED floodlights, depending on their wattage and beam angle, to achieve the desired lux level of 1,200–2,000 for pro matches.
Pole placement isn’t random—it’s strategic. The aim is to ensure 360° illumination with minimal shadows and no glare issues for players. Typically, poles are positioned outside the boundary ropes, often at an angle so the light beams cross over the field, creating overlapping coverage. This prevents blind spots when the ball goes high in the air or zips toward the boundary line.
Lighting designers also use 3D simulation software before installation to map how each floodlight’s beam will interact with the field. These simulations account for ball trajectories, player positions, and even broadcast camera angles to make sure every part of the pitch and outfield stays perfectly visible.
Lastly, safety matters. Tall poles come with built-in ladders or even motorized winches for maintenance, because climbing 40 meters to fix a light isn’t exactly a quick job. Regular inspections are scheduled to check for corrosion, bolt integrity, and fixture alignment to keep the system reliable for years.
If you’re planning to host professional cricket matches—especially international fixtures—you can’t just throw in some bright lights and hope for the best. ICC lighting guidelines are non-negotiable for any stadium aiming to qualify for official matches or TV broadcasts. These standards ensure players see the ball clearly, cameras capture every detail, and fans get an amazing experience both in the stadium and on screen.
Lighting needs vary depending on the level of play and whether the match is televised. For non-televised domestic games, you can aim for 500–750 lux on the horizontal plane across the entire field. This is enough for local leagues and practice matches.
However, as soon as TV coverage comes into the picture, the numbers jump. Televised domestic matches usually require around 1,000–1,500 lux, which ensures crisp visuals for standard-definition and HD broadcasts.
For international matches, especially those broadcast in HD or Ultra HD, the bar goes even higher: you’re looking at 1,800–2,000 lux horizontally on the field, and that’s just the start. Vertical illumination—the light falling on players from the camera’s perspective—is just as important. ICC often requires vertical lux levels of at least 1,500–2,000 lux for premium TV broadcasts. Why? Because without strong vertical lighting, facial close-ups, ball tracking, and slow-motion replays would look dull and grainy.
ICC standards don’t stop at brightness. Color temperature is another big factor, usually set between 5,000K and 6,500K, which mimics natural daylight and makes the broadcast look realistic. Then there’s CRI (Color Rendering Index)—a CRI of 80 or higher is a must so team jerseys, pitch conditions, and the ball all look vibrant and accurate on screen.
And if you’ve ever admired those super-slow-motion replays, here’s the secret: flicker-free lighting. High-speed cameras capture thousands of frames per second, so even a tiny flicker in the lights can ruin the footage. That’s why modern LED systems designed for stadiums maintain a flicker percentage close to zero, even at dimmed settings.
Meeting these standards isn’t just about ticking boxes for compliance. It’s about delivering a world-class viewing experience, whether it’s for a packed stadium crowd or millions of fans watching on HD or 4K screens. Poor lighting can make or break how the game looks, so getting it right is a huge deal for broadcasters, sponsors, and players alike.

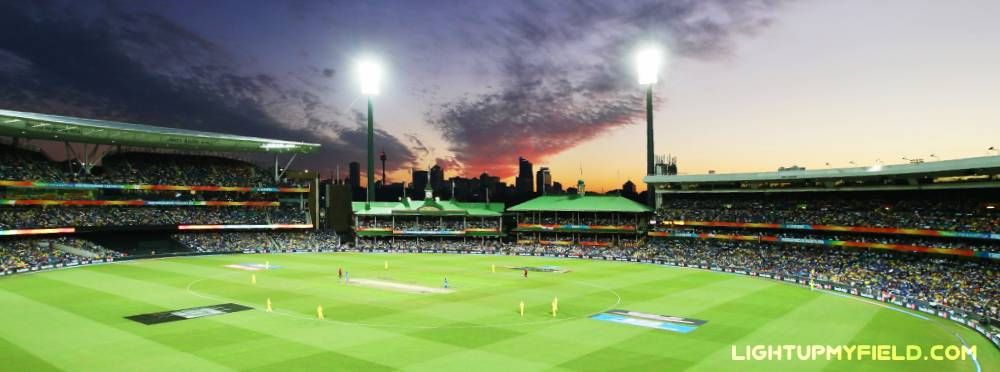

Installing a cricket lighting system isn’t just about fixing a few lights on tall poles. It’s a full-scale engineering project that requires precision and planning. It usually begins with a detailed site survey. Why? Because understanding the ground layout, existing infrastructure, and power supply capacity is the foundation for everything else. A large cricket stadium can easily draw hundreds of kilowatts during a night match, so ensuring the electrical backbone can handle the load is non-negotiable.
Once the initial assessments are done, engineers finalize the pole locations and foundation designs. For poles that can weigh 10–15 tons and rise 40 meters high, foundations are no joke—they often involve reinforced concrete bases several meters deep, designed to withstand wind loads and soil conditions.
A huge part of the installation involves the wiring and power distribution system. The stadium needs a robust electrical network capable of safely delivering large amounts of power to all floodlights without voltage drops or overloads. Typically, underground cabling connects the poles to a central power distribution board, equipped with circuit breakers, surge protection, and backup systems to prevent outages. High-quality cabling rated for outdoor use and protection against moisture and rodents is standard. For bigger stadiums, engineers may also integrate power factor correction devices to improve efficiency and reduce energy costs. All wiring and equipment must comply with local electrical codes and safety regulations, making it a complex but vital piece of the puzzle.
When the poles are ready, the floodlights go up. Here’s where the magic (and the math) happens. Each luminaire has a specific beam angle, and if even a few lights are off by a couple of degrees, you could end up with dark patches or excessive glare. To avoid that, technicians use laser alignment tools and 3D design software to set the correct aiming angles.
After mounting, the lights are wired into the control system, which might include smart automation for dimming and scheduling.
Before calling it done, the system goes through rigorous testing. Technicians measure horizontal and vertical lux levels, check uniformity ratios, and ensure color temperature and CRI meet ICC standards. Adjustments are made on the spot to fix any uneven lighting.
Finally, there’s a full test run—often under simulated or real match conditions—to confirm everything works exactly as planned before handover.
Even the most advanced LED lights aren’t a “set it and forget it” solution. Dust, dirt, and even bird droppings can cut light output by 15–20% over time, which affects visibility and TV quality. That’s why stadiums schedule routine cleanings, typically once or twice a year for LED systems. Older metal halide systems require far more attention—bulb replacements, ballast checks, and frequent aiming recalibrations.
Switching from metal halide to LED isn’t just about better lighting quality; it’s also about huge energy savings. LEDs typically use 50–70% less power, which can translate to saving tens of thousands of dollars per season for large stadiums. Some grounds with high usage have reported payback periods of just 3–5 years after switching to LED systems.
Pair that with smart dimming and scheduling controls, and the savings get even better. For example, dimming lights to 50% for practice sessions can slash electricity bills without compromising player visibility.
More venues are now exploring solar-assisted lighting systems to reduce carbon footprints. While a full solar setup for a big stadium might still be challenging, hybrid models—where solar supports part of the load—are becoming a realistic option, especially in regions with strong sunlight.

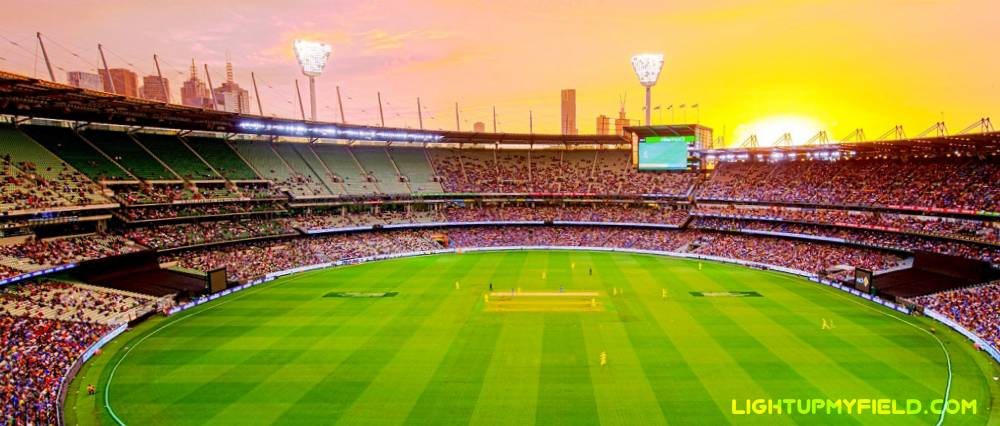

Cricket ground lighting cost can vary widely depending on a bunch of things — like the size of the field, the quality and type of lighting you want, and whether you’re simply lighting up for local evening practice or gearing up to meet the high standards of international televised matches.
For a small local club that just needs enough light for evening practice sessions or casual matches, the ballpark figure usually falls somewhere between $30,000 and $50,000. This typically covers a handful of poles, basic LED floodlights (sometimes older metal halide tech), and a straightforward control system. It’s simple, but enough to keep the game going after sunset.
Now, when you step into professional or international-level cricket, things get a bit more serious — and expensive. A full-scale stadium lighting setup with 6 to 8 poles, dozens of powerful LED floodlights on each, advanced aiming tech, and smart control software to automate dimming and scheduling can cost anywhere from $400,000 up to $700,000, and in some ultra-modern stadiums, it might even push past the $1 million mark.
The biggest chunk of your initial investment goes to the lighting hardware itself. Modern LED floodlights, which are now the norm for new installations, come with a higher upfront price compared to the old metal halide lamps. But that’s because they pack in better efficiency, longer lifespan (often up to 50,000 hours), and features like flicker-free operation for TV replays.
A typical professional-grade LED floodlight can cost several hundred to a few thousand dollars per fixture, and a stadium needs dozens, so the numbers add up fast. Plus, don’t forget the control systems—smart lighting consoles, dimmers, and software—adding tens of thousands more to the tab.
Installing a cricket lighting system is a heavy engineering job. It’s not just about fixing lights on poles. You need strong foundations to hold tall, sometimes 40-meter poles that can weigh 10–15 tons each. Concrete bases have to be carefully designed and poured, taking into account wind loads and soil conditions.
Then there’s the cost of skilled labor: electricians, engineers, riggers with cranes, and technicians for precision alignment of each light fixture. They use laser tools and 3D design software to make sure every light hits the right spot. All this effort often accounts for 15–25% of the total project cost. Plus, testing and certification to ensure ICC compliance adds another layer of expense.
Here’s where LED lighting really shines (pun intended). Compared to metal halide systems, LEDs can cut energy consumption by 50–70%, which translates into serious savings on monthly electricity bills. Imagine a stadium that used to spend around $10,000 per month on lighting. After switching to LED, that might drop to about $3,000 to $4,000.
Maintenance costs also take a nosedive because LED lights last much longer and don’t need frequent bulb replacements or cooling system fixes. Dust and grime can reduce brightness by 20% or more, so occasional cleaning is still needed, but typically only once or twice a year for LEDs, compared to more frequent upkeep for older systems.
When you factor all that in, many stadiums find they recover their initial investment within 3 to 5 years thanks to lower energy bills and reduced maintenance.
It’s not just the lights, poles, and power bills. There are a few other expenses that can make a difference:
Poles and Foundations can be a big-ticket item, usually making up around 20–30% of the total cost because of their size, strength requirements, and the complex concrete bases.
Control Systems for smart lighting—automated dimming, remote scheduling, and integration with broadcast tech—add to the upfront costs but offer flexibility and further energy savings over time.
Installation and Commissioning costs cover everything from labor and equipment rentals to the precision work needed to meet exact lighting specs.
And don’t forget Compliance and Safety Checks. Meeting ICC or broadcast standards means extra testing, certification, and sometimes redesigns, which can bump up the budget but ensure you’re ready for top-level cricket.
Lighting a cricket ground might feel like a hefty investment upfront, but the benefits are well worth it. Modern LED systems not only provide better light quality for players and fans but also offer a significant return in energy savings and maintenance costs. Plus, if your venue wants to attract televised matches or international tournaments, having world-class lighting isn’t optional — it’s a must-have that can elevate your ground’s status and appeal.
| Cost Component | Details / Range |
|---|---|
| Basic Local Club Ground | $30,000 – $50,000 (few poles, basic LED or metal halide lights, simple controls) |
| Professional / International Stadium | $400,000 – $700,000+ (6-8 poles, high-wattage LED floodlights, advanced aiming, smart controls) |
| Ultra-modern Stadium | $1,000,000+ (top-tier LED, full automation, cutting-edge tech) |
| Lighting Equipment Cost | Several hundred to a few thousand dollars per LED fixture; total hardware + control systems significant |
| Installation & Commissioning | 15% – 25% of total project cost (foundations, labor, cranes, precision alignment, testing) |
| Poles & Foundations | 20% – 30% of total cost (heavy-duty poles with deep concrete bases) |
| Energy Consumption Savings | LEDs save 50% – 70% vs. metal halide systems |
| Monthly Power Costs (Before LED) | Around $10,000/month |
| Monthly Power Costs (After LED) | Reduced to approximately $3,000 – $4,000/month |
| Maintenance Frequency | LED: 1-2 times per year; Metal halide: more frequent |
| ROI Timeline | 3 to 5 years (due to energy and maintenance savings) |
Cricket under lights has come a long way from the early days. With the right design, advanced LED technology, and proper planning, a ground can go from average to world-class. Whether you’re lighting up a community field or an international stadium, investing in a well-planned lighting system pays off in player performance, fan experience, and long-term savings.
The game deserves to be seen in the best light—literally.
